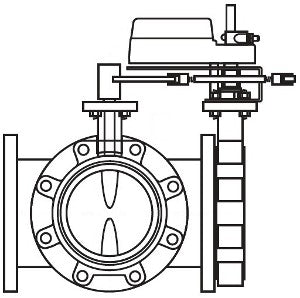

Schneider Electric VFUS-630C-E25-L-14 Valve Actuator Assembly 4 in Butterfly

Product Description

This Schneider Electric valve actuator assembly, model VFUS-630C-E25-L-14, is designed for butterfly valve applications. It features a four-inch body size and offers a three-way mixing or diverting configuration. The actuator operates with electric power input of twenty-four volts AC or DC and has a torque rating of two hundred ten inch-pounds.

• Body Size: 4 inches
• Flow Coefficient: 841 cv
• Close-Off Pressure: 50 PSI

Product Highlights

This actuator is suitable for various applications where automatic control is required. It is designed to fail in place to maintain safety. The actuator is rated NEMA 2 for protection against dust and light liquids.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VFUS-630C-E25-L-14

Technical Specifications

• Body Material: Polyester coated cast iron
• Actuator Type: Rotary electric
• Operating Temperature: -40 to 121 °C
• Protection Rating: NEMA 2
• Voltage: 24 VAC/VDC
• Auxiliary Switch: 2 SPDT
• Control Type: Automatic reset
• Torque: 210 inch-pounds
