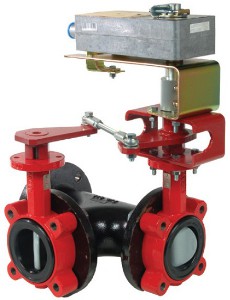

Schneider Electric VFFS-632C-556-L-11 Butterfly Valve Assembly 3-Way Mixing 24 VAC/22-30 VDC

Product Description

Schneider Electric VFFS-632C-556-L-11 is a butterfly valve assembly designed for efficient flow control. This assembly features a two-inch body size and utilizes a three-way mixing/diverting configuration. It is suitable for applications requiring precise operation with both electric and float actuator types.

• Body Size: 2 inches
• Configuration: 3-Way Mixing/Diverting
• Control Signal: Floating

Product Highlights

This valve assembly is suitable for various applications, such as butterfly valves, dampers, and globe valves. It provides reliable performance with a close-off pressure of 175 PSI and a flow coefficient of 144 cv.

Product Information

Standard Information

• Actuator Type: Electric
• Body Material: Polyester coated cast iron

Technical Specifications

• Flow Coefficient: 144 cv
• Operating Fluid Temperature: -40 to 121 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Torque: 133 in-lb
• Protection Rating: NEMA 1, NEMA 2 (with conduit connector)
• Seat Material: EPDM (ethylene propylene diene monomer)
