SCHNEIDER ELECTRIC VFFS-631C-556D-L-12 VALVE ACTUATOR ASSEMBLIES
SCHNEIDER ELECTRIC VFFS-631C-556D-L-12 VALVE ACTUATOR ASSEMBLIES

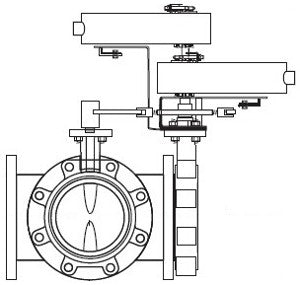

Schneider Electric VFFS-631C-556D-L-12 Valve Actuator Assembly 2-1/2 in

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: VFFS-631C-556D-L-12
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$1,401.52
$1,401.52
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Schneider Electric offers the VFFS-631C-556D-L-12 valve actuator assembly designed for efficient flow control. This assembly includes a two and one-half inch valve body with a three-way mixing/diverting capability for superior fluid handling.

  • Body Size: 2-1/2 in
  • Actuator Type: Electric
  • Torque: 133 in-lb

Product Highlights

This valve actuator features a robust design and is suitable for various applications in HVAC systems. The construction materials and design ensure reliability under pressure.

Product Information

Standard Information

  • Brand: Schneider Electric
  • Type: Valve Actuator Assembly

Technical Specifications

  • Configuration: 3-Way Mixing/Diverting
  • Close-Off Pressure: 175 PSI
  • Flow Coefficient: 282 cv
  • Power Input Voltage: 24 VAC or 22-30 VDC
  • Ambient Air Temperature for Operation: -30 to 60 °C
  • Body Material: Polyester coated cast iron
  • Disc Material: Ductile Iron - Nylon 11 Coated
  • Protection Rating: NEMA 1, NEMA 2
