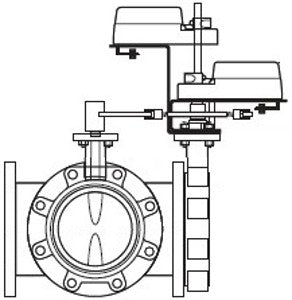

Schneider Electric VFFS-630C-E25D-L-14 Valves 4 Inch Butterfly Valve Assembly

Product Description

Schneider Electric's VFFS-630C-E25D-L-14 is a robust valve actuator assembly designed for various fluid control applications. This butterfly valve features a four-inch body size and supports three-way mixing or diverting operations. The electrical actuator facilitates efficient control with a floating signal input.

• Body Size: 4 inches
• Type: Butterfly Valve
• Flow Coefficient: 841 cv

Product Highlights

The VFFS-630C-E25D-L-14 provides reliable flow control with its dual actuator design. It is suitable for non-steam applications and features a fail-in-place position in case of a power loss.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve-Actuator Assembly

Technical Specifications

• Configuration: 3-Way Mixing/Diverting
• Close-Off Pressure: 175 PSI
• Actuator Type: Electric
• Power Input Voltage: 24 VAC/VDC
• Torque: 210 in-lb
• Protection Rating: NEMA 2
• Material: Ductile Iron - Nylon 11 Coated
• Operating Fluid Temperature: -40 to 121 °C
