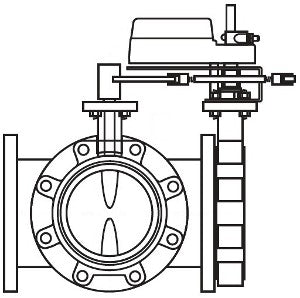

Schneider Electric VFFS-630C-E25-L-13 butterfly valve assembly with actuator

Product Description

The Schneider Electric VFFS-630C-E25-L-13 is a valve-actuator assembly designed for efficient fluid control. This assembly features a butterfly valve that is ideal for applications requiring versatility in flow management.

• Body size: three inches
• Configuration: three-way mixing/diverting
• Material: ductile iron with nylon coating

Product Highlights

This assembly provides robust control and is suitable for various environments. It operates under a close-off pressure of 175 PSI and offers a flow coefficient of 461 cv for optimal performance.

Product Information

Standard Information

• Actuator Type: Electric
• Control Signal: Floating

Technical Specifications

• Torque: 210 in-lb
• Ambient Air Temp for Operation: -20 to 50 °C
• Power Input Voltage: 24 VAC/VDC
• Protection Rating: NEMA 2
• Disc Shape: Full
• Body Material: Polyester coated cast iron
• Seating Material: EPDM
• Loss of Power Position: Fail in place
