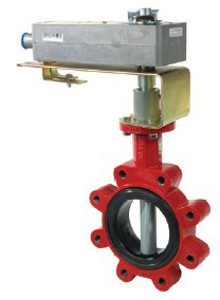

Schneider Electric VFFS-6210-556-L-12 Valve Actuator Assembly 2-1/2 inches

Product Description

The Schneider Electric VFFS-6210-556-L-12 is a valve actuator assembly designed for reliable operation in diverse applications. This two-way, flanged butterfly valve features a robust construction with a ductile iron body and nylon coating.

• Body Size: 2-1/2 inches
• Configuration: 2-Way Butterfly Valve
• Maximum Close-Off Pressure: 175 PSI

Product Highlights

This product operates with an electric actuator and utilizes floating control signals. The actuator is spring return and remains normally open during a loss of power.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow Coefficient: 282 cv
• Power Input Voltage: 24 VAC or 22-30 VDC
• Torque: 133 in-lb
• Protection Rating: NEMA 1, NEMA 2
• Ambient Air Temperature for Operation: -30 to 60 °C
• Relative Humidity: 5-95% non-condensing
• Actuator Type: Rotary
• Material: Polyester coated cast iron
