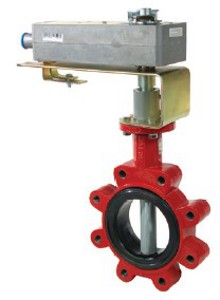

Schneider Electric VFFS-6210-556-L-11 Valve Actuator Assembly 2 in

Product Description

Schneider Electric VFFS-6210-556-L-11 is a valve actuator assembly designed for efficient control in various applications. It features a two-inch body size in a 2-way butterfly configuration. The assembly includes an electric actuator that operates with a powered control signal. Ideal for HVAC installations, the assembly is rated for a maximum close-off pressure of one hundred seventy-five PSI.

• Body Size: 2 in
• Flow Coefficient: 144 cv
• Power Input Voltage: 24 VAC / 22-30 VDC

Product Highlights

This actuator assembly is suitable for butterfly valves and has a standard NEMA protection rating. It offers robust operation with a torque of one hundred thirty-three inch-pounds.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric
• Country of Origin: US
• Product Type: Valve-Actuator Assembly

Technical Specifications

• Actuator Type: Electric
• Control Signal: Floating
• Loss of Power Type: Spring Return
• Ambient Air Temperature Operating: -30 to 60 °C
• Operating Fluid Temperature: -40 to 121 °C
• Protection Rating: NEMA 1, NEMA 2
• Torque: 133 in-lb
• Mechanical Movement: Rotary
• Seating Material: EPDM
• Electrical Insulation Class: Class II
