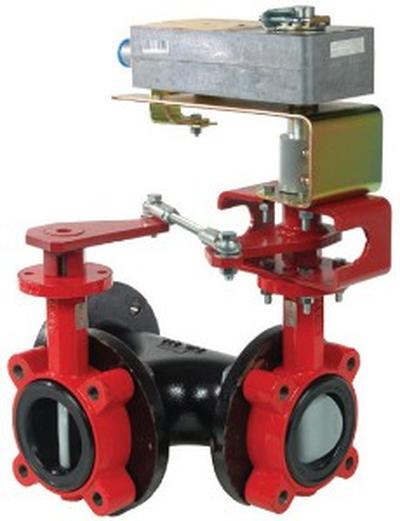

Schneider Electric VFF-632C-556-L-11 Valve Actuator Assembly 2 in

Product Description

Schneider Electric VFF-632C-556-L-11 is a valve actuator assembly designed for efficient control of fluid flow. It features a two-inch body size and operates on a three-way mixing and diverting mechanism.

• Body Size: 2 in
• Configuration: 3-Way Mixing/Diverting
• Type: Butterfly

Product Highlights

This valve is capable of handling a close-off pressure of one hundred seventy-five PSI, making it suitable for a variety of applications. It utilizes an electric actuator with a torque rating of one hundred thirty-three inch-pounds.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Material: Polyester coated cast iron
• Actuator Type: Rotary
• Flow Coefficient: 144 cv
• Control Signal: Floating
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Ambient Air Temperature for Operation: -30 to 60 °C
• Relative Humidity: 5-95% non-condensing
• IP Degree of Protection: NEMA 1, NEMA 2
