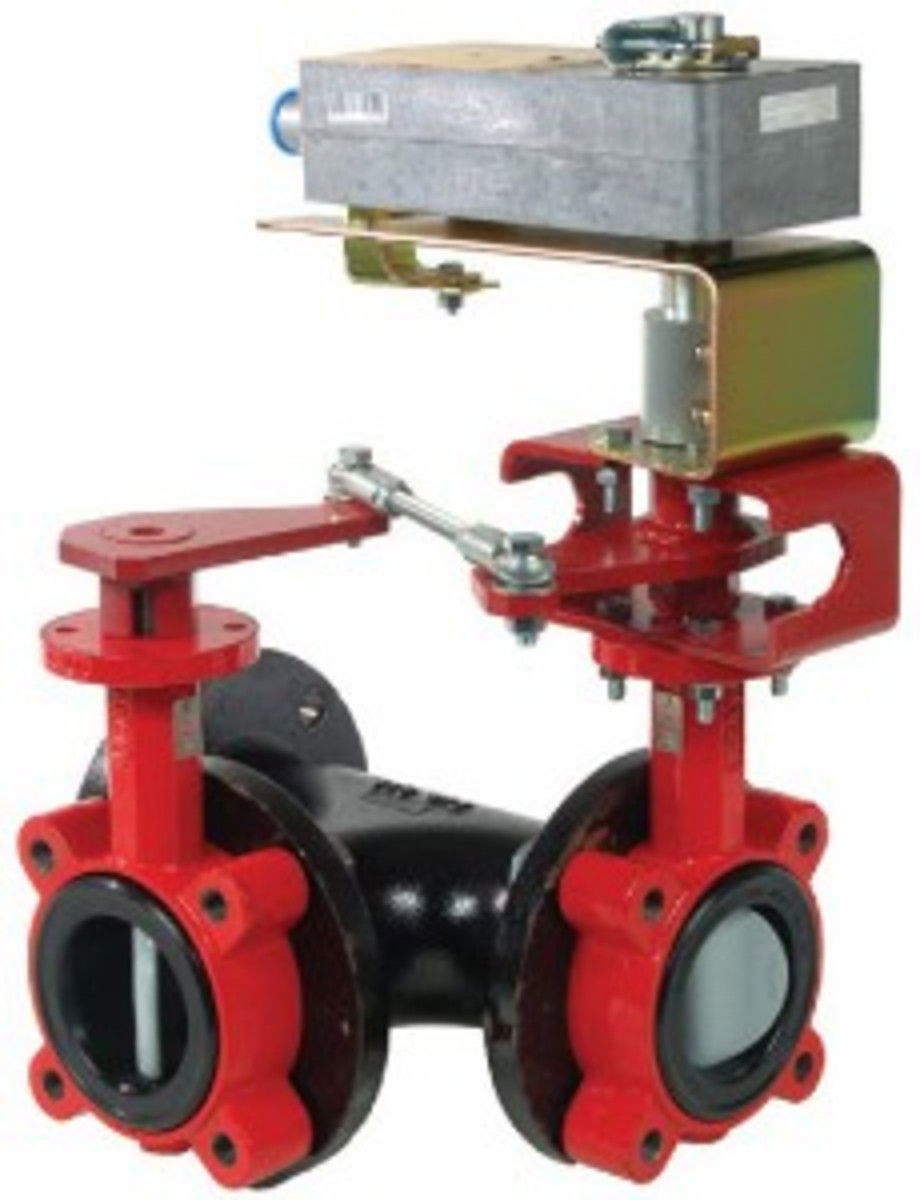

Schneider Electric VFF-631C-556-L-11 Butterfly Valve Actuator Assembly 2 in

Product Description

The Schneider Electric VFF-631C-556-L-11 is a 2-inch valve actuator assembly designed for reliable performance in various applications. This assembly features a three-way mixing and diverting configuration, ideal for managing fluid flow with precision.

• Electric actuator with a spring return function.
• Full body style with a durable ductile iron and nylon coating.
• Close-off pressure rated at 175 PSI.

Product Highlights

This valve actuator is suitable for automatic reset control types and provides robust operation in non-condensing environments. It is explicitly designed for applications where steam is not involved.

Product Information

Standard Information

• Body Size: 2 in
• Actuator Type: Electric

Technical Specifications

• Configuration: 3-Way Mixing/Diverting
• Body Material: Polyester Coated Cast Iron
• Flow Coefficient: 144 cv
• Torque: 133 in-lb
• Power Input Voltage: 24 VAC/22-30 VDC
• Mechanical Movement: Rotary
• Ambient Air Temperature for Operation: -30 to 60 °C
• Protection Rating: NEMA 1, NEMA 2
