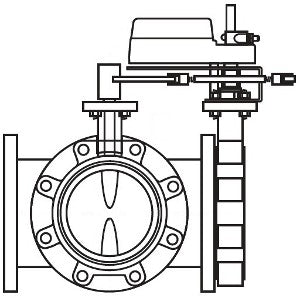

Schneider Electric VFF-630C-E25-L-13 valve-actuator assembly 3 in butterfly valve assemblies

Product Description

The Schneider Electric VFF-630C-E25-L-13 is a valve-actuator assembly designed for effective fluid control in various applications. This assembly features a three-inch butterfly valve that operates efficiently for mixing and diverting tasks. It is suitable for use in North America and is powered by a twenty-four VAC/VDC electric actuator.

• Body Size: three inches
• Actuator Type: Electric
• Flow Coefficient: 461 cv

Product Highlights

This assembly is built for durability and reliability in fluid handling systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: valve-actuator assembly

Technical Specifications

• Configuration: three-way mixing/diverting
• Connection Type: Flanged
• Close-Off Pressure: 175 PSI
• Protection Rating: NEMA 2
• Ambient Air Temperature for Operation: -20 to 50 °C
• Disc Material: Ductile Iron with Nylon 11 Coating
• Electrical Insulation Class: IP11
• Torque: 210 in-lb
