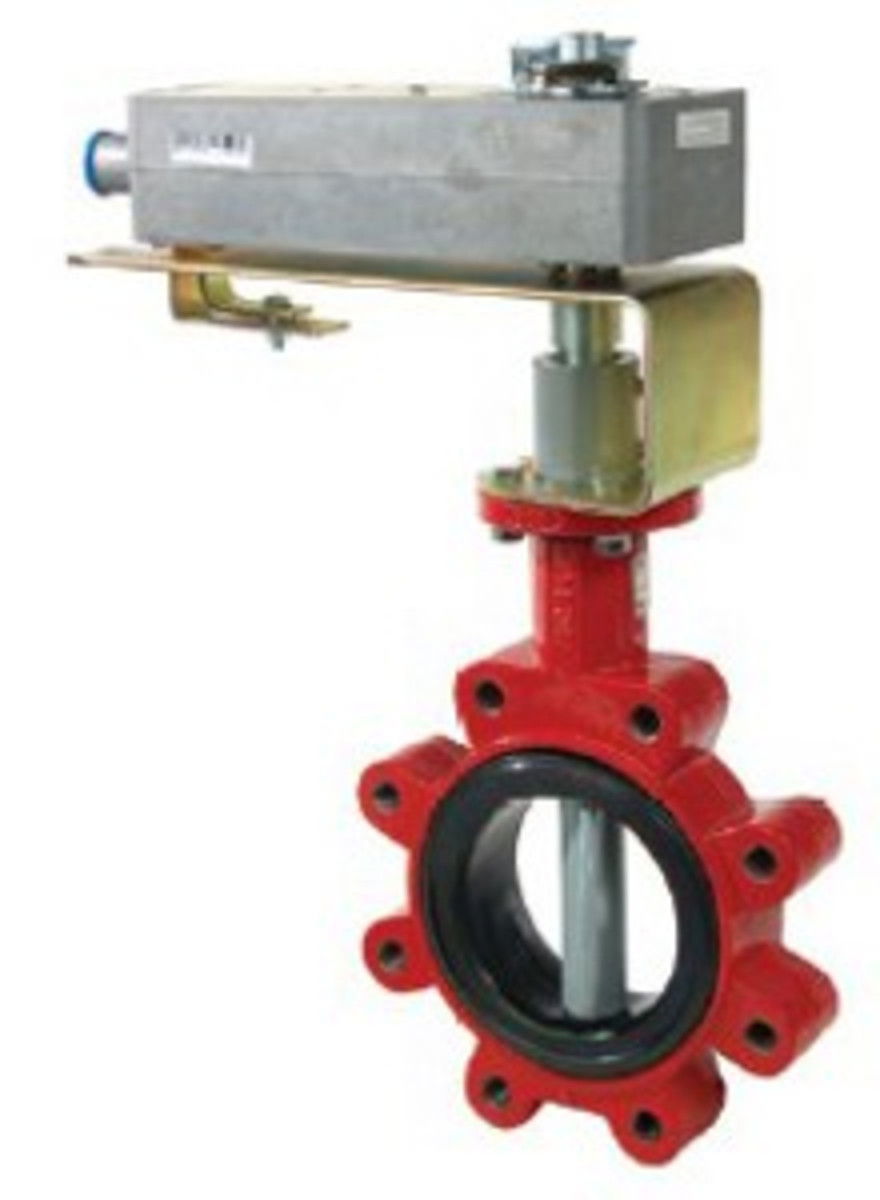

Schneider Electric VFF-6220-556-L-11 Butterfly Valve Assembly 2 in

Product Description

The Schneider Electric VFF-6220-556-L-11 is a two-inch butterfly valve assembly designed for effective fluid control in various applications. This valve operates under a close-off pressure of one hundred seventy-five PSI, making it suitable for a range of environments. It features an electric actuator with a floating control signal, ensuring reliable operation.

• Body Size: 2 inches
• Configuration: 2-Way
• Connection: Flanged

Product Highlights

This valve assembly includes a ductile iron disc and is coated with nylon for added durability. It is rated for ambient temperatures from minus thirty to sixty degrees Celsius and holds a humidity tolerance of five to ninety-five percent non-condensing.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Actuator Type: Electric
• Power Input Voltage: 24 VAC / 22-30 VDC
• Torque: 133 in-lb
• Flow Coefficient: 144 cv
• Material Disc: Ductile Iron - Nylon 11 Coated
• Mechanical Movement: Rotary
• Protection Rating: NEMA 1, NEMA 2
• Relative Humidity: 5-95 % non-condensing
