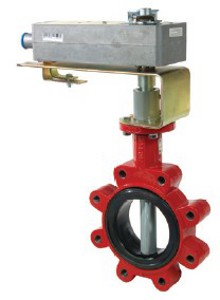

Schneider Electric VFF-6210-556-L-11 Valve Actuator Assembly 2 in Butterfly

Product Description

The Schneider Electric VFF-6210-556-L-11 is a 2-inch, electric butterfly valve actuator assembly designed for two-way control applications. It features a flanged, lug body style with a full disc shape made from ductile iron and nylon 11 coating. This valve assembly delivers a flow coefficient of 144 cv and can withstand a close-off pressure of 175 PSI.

• Body Size: 2 inches
• Configuration: 2-Way
• Type: Butterfly

Product Highlights

This actuator assembly is suitable for a variety of applications including HVAC systems and process control. It operates with a power input of 24 VAC or 22 to 30 VDC, making it versatile for different installations. The actuator is designed to return to a normally open position when power is lost.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Torque: 133 in-lb
• Flow Coefficient: 144 cv
• Close-Off Pressure: 175 PSI
• Actuator Type: Electric
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Material Disc: Ductile Iron - Nylon 11 Coated
• Protection Rating: NEMA 1, NEMA 2
• Operating Fluid Temperature: -40 to 121 degrees Celsius
