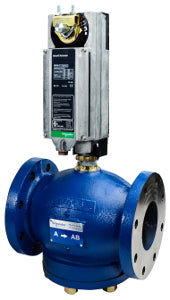

Schneider Electric VF-8213-516-5-16 Valve Actuator Assembly 6 In 2-Way Globe Replacement MPN

Product Description

The Schneider Electric VF-8213-516-5-16 is a valve actuator assembly designed for effective flow regulation. This assembly features a six-inch globe valve and operates on an electric actuator. It is ideal for applications requiring precise control of fluid flow.

• Body size of six inches
• 25 PSI close-off pressure
• Low power input voltage range from 24 VAC/VDC to 30 VDC

Product Highlights

This valve actuator assembly integrates advanced technology for reliable operation and enhanced performance.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Configuration: 2-Way
• Actuator Type: Electric, Float
• Control Signal: Floating
• Flow Coefficient: 370 cv
• Torque: 300 in-lb
• Stem Flow Action: Stem up A open
• Close-Off Pressure: 125 PSI
• Electrical Insulation Class: Class II
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -31.6 to 60 °C
• Ambient Air Temperature for Storage: -40 to 71 °C
• IP Rating: IP10, IP56
