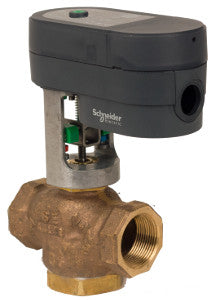

Schneider Electric VF-7313-112-4-06 Valve Assembly 3/4 in Globe Mixing NPT

Product Description

Schneider Electric VF-7313-112-4-06 is a valve assembly designed for effective fluid control. This valve features a three-way mixing configuration with a brass trim. It is suitable for various applications in North America.

• Body Size: 3/4 inch
• Type: Globe valve
• Connection Type: NPT

Product Highlights

This assembly offers precision control with feedback features and an LED status indicator. It operates on a 24 VAC input and provides robust performance under various conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve-actuator assembly

Technical Specifications

• Flow Coefficient: 7.5 cv
• Close-Off Pressure: 135 PSI
• Power Input Voltage: 24 VAC / 20 to 24 VDC
• Force: 67 lbf
• Operational Temperature: -7 to 138 degrees Celsius
• Stroke Length: 16.5 mm
• Relative Humidity: 5-95% non-condensing
• Protection Rating: NEMA 2
