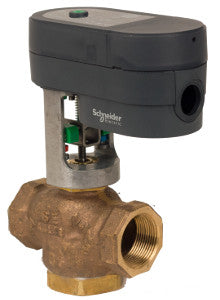

Schneider Electric VF-7313-112-4-02 Valve Actuator Assembly 24 V AC

Product Description

The Schneider Electric VF-7313-112-4-02 is a 24 V AC valve actuator assembly designed for efficient operation in various applications. This valve is suitable for a range of industrial and commercial uses due to its robust design and reliable performance.

• Body Size: 1/2 inch
• 3-Way Mixing Configuration
• Flow Coefficient: 2.2 cv

Product Highlights

This valve actuator features a straightway body pattern and offers easy installation with NPT connections. The electric actuator is controlled by a pulse width modulation signal, providing precise control of flow.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• MPN: VF-7313-112-4-02
• Close-Off Pressure: 219 PSI
• Power Input Voltage: 24 VAC
• Control Signal: PWM
• Material Trim: Brass
• Force: 67 lbf
• Stroke Length: 16.5 mm
• Operating Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -5 to 55 °C
• Relative Humidity: 5 to 95 % non-condensing
