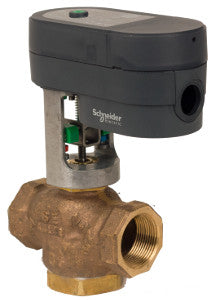

Schneider Electric VF-7313-110-4-04 Valve Actuator Assembly 24 V AC

Product Description

Schneider Electric VF-7313-110-4-04 is a valve actuator assembly designed for effective operation in various applications. This assembly features a half-inch globe valve in a 3-way mixing configuration with a straightway body pattern. The unit includes an electric actuator that operates on twenty-four volts alternating current and provides precise control for various valve functions.

• Body Size: 1/2 inch
• Flow Coefficient: 4.4 cv
• Close-Off Pressure: 250 PSI

Product Highlights

Ideal for HVAC systems and fluid control applications, this actuator assembly provides reliable performance and efficient operation. It is suitable for automatic reset control types and integrates seamlessly with existing systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Origin: US

Technical Specifications

• Actuator Type: Electric
• Power Input Voltage: 24 VAC
• Force: 78 lbf
• Material Trim: Brass
• Protection Rating: NEMA 2
• Seat Material: Bronze
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -5 to 55 °C
• Relative Humidity: 5 to 95 % non-condensing
