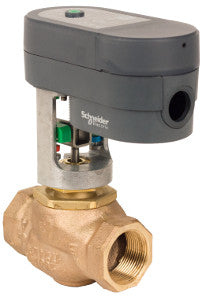

Schneider Electric VF-7213-112-4-09 SmartX Glove Valve Assembly 24V AC

Product Description

The Schneider Electric VF-7213-112-4-09 is a SmartX glove valve assembly designed for reliable control in HVAC systems. This assembly features a body size of one and one-fourth inches and operates with a two-way configuration for efficient flow management.

• Body size: one and one-fourth inches
• Electric actuator with non-spring return
• Flow coefficient of twenty cv

Product Highlights

The assembly includes a linear actuator, which enables precise control over the valve position, ensuring effective regulation of air and fluid flow.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VF-7213-112-4-09

Technical Specifications

• Stem Flow Action: Stem up A open
• Material Trim: Brass
• Close-Off Pressure: forty-two PSI
• Power Input Voltage: twenty-four VAC, twenty to twenty-four VDC
• Force: sixty-seven lbf
• Mechanical Movement: Linear
• Protection Rating: NEMA 2
• Operating Fluid Temperature: negative seven to one hundred thirty-eight degrees Celsius
• Seating Seal Material: EPDM
