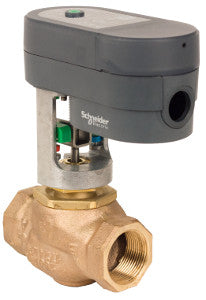

Schneider Electric VF-7213-112-4-08 SmartX Glove Valve Assembly 1 in 2-Way MGF350V-24FP

Product Description

The Schneider Electric VF-7213-112-4-08 is a smart glove valve assembly designed for efficient operation in various applications. This unit features a one-inch body size with a two-way configuration. It uses an electric actuator for precise control, suitable for environments requiring reliable flow management.

• Body Size: 1 inch
• Configuration: 2-Way
• Actuator Type: Electric

Product Highlights

This valve assembly is suitable for automatic control applications. It includes connection options and is capable of handling pressurized systems.

Product Information

Standard Information

• Country of Origin: US
• Manufacturer: Schneider Electric

Technical Specifications

• Flow Coefficient: 14 cv
• Power Input Voltage: 24 VAC, 20 to 24 VDC
• Close-Off Pressure: 67 PSI
• Stem Flow Action: Stem up open
• Control Signal: Floating, Pulse Width Modulating
• Loss of Power Position: Non-Spring Return
• Material Trim: Brass
• Protection Rating: NEMA 2
