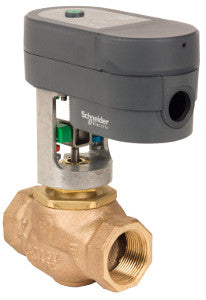

Schneider Electric VF-7213-112-4-04 SmartX Glove Valve Assembly 2-Way Replacement MPN

Product Description

The Schneider Electric VF-7213-112-4-04 is a globe valve assembly designed for efficient control. It features a two-way configuration and a half-inch size, optimized for various applications.

• Body Made from Durable Brass
• Effective Flow Coefficient of 4.4 cv
• Electric Actuator with NEMA 2 Protection

Product Highlights

The SmartX Glove Valve Assembly is created for reliability and ease of use. It employs a floating control signal and maintains performance under conditions of power loss through a fail-in-place feature.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Size: 1/2 inch
• Configuration: 2-Way
• Flow Coefficient: 4.4 cv
• Close-Off Pressure: 219 PSI
• Actuator Type: Electric
• Power Input Voltage: 24 VAC, 20 to 24 VDC
• Force: 67 lbf
• Ambient Air Temperature for Operation: -5 to 55 °C
• Ambient Air Temperature for Storage: -40 to 70 °C
