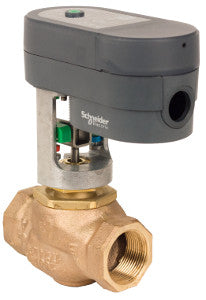

Schneider Electric VF-7213-112-4-02 SmartX Valve Assembly 1/2 in 2-Way MGF350V-24FP

Product Description

The Schneider Electric VF-7213-112-4-02 is a SmartX valve assembly designed for efficient fluid control. This valve is constructed with a body size of one-half inch and operates as a two-way globe valve. It uses a non-spring return electric actuator, suitable for various applications in HVAC and plumbing.

• Body Size: 1/2 inch
• Configuration: 2-Way
• Flow Coefficient: 1.3 cv

Product Highlights

This valve assembly features a brass trim and provides feedback with an LED status indicator. Its close-off pressure is 219 PSI, ensuring reliable operation under pressure.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Actuator Type: Electric
• Flow Coefficient: 1.3 cv
• Power Input Voltage: 24 VAC, 20 to 24 VDC
• Loss of Power Position: Fail in place
• Feedback Features: LED Status Indicator
• Protection Rating: NEMA 2
• Dimensions: Length 24.43 cm, Width 11.43 cm, Height 23.164 cm
• Operating Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -5 to 55 °C
• Relative Humidity: 5-95% non-condensing
• Seating Seal Material: PTFE
