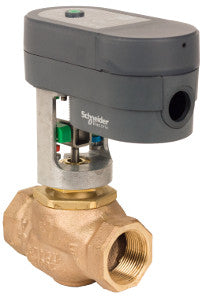

Schneider Electric VF-7213-110-4-09 SmartX Glove Valve Assembly 24 VAC

Product Description

Schneider Electric VF-7213-110-4-09 is a SmartX glove valve assembly designed for efficient operation in HVAC systems. This assembly features a size of one and one-quarter inch and includes a two-way configuration, providing precise control of fluid flow.

• Body Size: 1-1/4 inches
• Actuator Type: Electric
• Flow Coefficient: 20 cv

Product Highlights

The valve operates with a stem up action, is compatible with various control signals, and is built to handle demanding conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VF-7213-110-4-09

Technical Specifications

• Connection Type: NPT
• Material Trim: Brass
• Close-Off Pressure: 49 PSI
• Power Input Voltage: 24 VAC, 20 to 24 VDC
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 138 degrees Celsius
• Stroke Length: 16.5 mm
• Ambient Air Temperature for Operation: -5 to 55 degrees Celsius
• Ambient Air Temperature for Storage: -40 to 70 degrees Celsius
