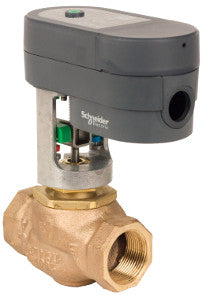

Schneider Electric VF-7213-110-4-01 SmartX Glove Valve Assembly 1/2 In 2-Way

Product Description

Schneider Electric VF-7213-110-4-01 is a SmartX glove valve assembly designed for reliable control in various plumbing and HVAC applications. This valve features a half-inch body size and a two-way configuration, making it ideal for managing fluid flow. It is equipped with a non-spring return electric actuator, providing automated control for efficient operation.

• Body Size: 1/2 in.
• Configuration: 2-Way
• Flow Coefficient: 0.4 cv

Product Highlights

This valve assembly is suitable for various operational settings, including heating, ventilation, and air conditioning systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• MPN: VF-7213-110-4-01
• Body Material: Bronze
• Power Input Voltage: 24 VAC, 20 to 24 VDC
• Close-Off Pressure: 250 PSI
• Stroke Length: 16.5 mm
• Operating Fluid Temperature: -7-138 °C
• Relative Humidity: 5-95 % non-condensing
• Protection Rating: NEMA 2
