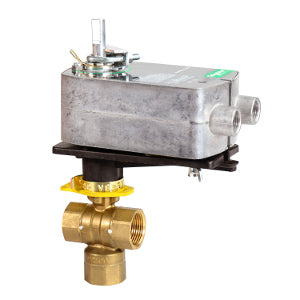

Schneider Electric VF-2313-526-9-12 Ball Valve Assembly 3 Way Mixing Actuator

Product Description

The Schneider Electric VF-2313-526-9-12 is a durable ball valve assembly suitable for mixing applications. This valve has a body size of three-quarters of an inch and is designed for NPT connections. It features a brass trim and a flow coefficient of 0.66 cv. This assembly operates effectively with glycol solutions and water, up to a close-off pressure of 50 PSI. The actuator type is electric, utilizing a floating control signal and a spring return mechanism for loss of power scenarios.

• Body Size: 3/4 inches
• Configuration: 3-Way Mixing
• Actuator Type: Electric

Product Highlights

This assembly is designed for dampers and globe valves, ensuring reliable operation.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Material: Forged brass
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Torque: 35 in-lb
• Power Input Voltage: 22 to 30 VDC, 24 VAC
• Control Type: Manual override
• Flow Coefficient: 0.66 cv
