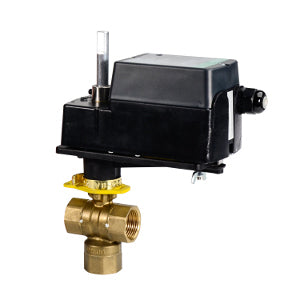

Schneider Electric VF-2313-505-9-45 Valve Actuator Assembly

Product Description

The Schneider Electric VF-2313-505-9-45 is a practical valve actuator assembly designed for efficient control in a variety of applications. This assembly features a one and one-quarter inch size and is built primarily for three-way mixing operations. It utilizes a brass body with a flow coefficient of 19.4 cv, making it suitable for many fluid management tasks.

• Body Size: 1-1/4 inches
• Material: Forged Brass
• Power Input: 24 VAC

Product Highlights

Ideal for automatic reset control in HVAC systems. The actuator operates on a 24 VAC supply and is compatible with SmartX technology. It is engineered to provide reliable performance in fluid flow management.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US
• Manufacturer: Schneider Electric

Technical Specifications

• Valve Type: Ball
• Configuration: 3-Way Mixing
• Close-Off Pressure: 40 PSI
• Torque: 35 in-lb
• Electrical Insulation Class: Class II
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Air Temperature for Operation: -31.6 to 54.4 °C
• NEMA Degree of Protection: NEMA 2
