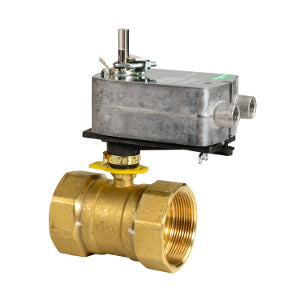

Schneider Electric VF-2253-526-9-52 Ball Valve Actuator Assembly 1-1/2 In

Product Description

The Schneider Electric VF-2253-526-9-52 is a ball valve actuator assembly designed for effective control in various fluid applications. With a body size of one and a half inches and a two-way configuration, this assembly utilizes a stainless steel trim for durability. The valve operates with a flow coefficient of 41.3, making it suitable for many systems. It supports electric actuation with a floating control signal using 24 VAC or 22 to 30 VDC.

• Body Size: 1-1/2 inches
• Type: Ball Valve
• Actuator: Electric, Rotary

Product Highlights

This actuator assembly includes a spring return mechanism and is rated for a close-off pressure of 70 PSI. It cannot be used with steam applications, and has a mechanical movement feature that allows for precise control.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Connection Type: NPT
• Protection Rating: NEMA 2
• Torque: 35 in-lb
• Electrical Insulation Class: Class II
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Ambient Air Temperature for Storage: -40 to 71 °C
• Relative Humidity: 5 to 95 % non-condensing
• Motor Type: Brushless DC motor
