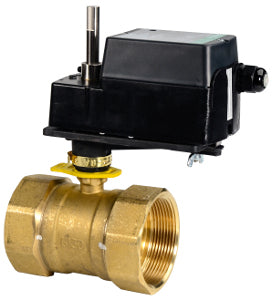

Schneider Electric VF-2253-506-9-52 Ball Valve Assembly 24 V AC

Product Description

The Schneider Electric VF-2253-506-9-52 is a ball valve assembly designed for various HVAC applications. This valve features a body size of one and a half inches and operates as a two-way ball valve with NPT connections. It is constructed of stainless steel for durability and has a flow coefficient of 41.3 cv. The valve operates at a maximum close-off pressure of seventy PSI.

• Body size: 1-1/2 inches
• Actuator type: Electric with floating control signal
• Operating voltage: 24 VAC

Product Highlights

This product is suitable for non-steam applications and is designed with a non-spring return actuator. The actuator's rotary motion and electrical characteristics make it ideal for automation in HVAC systems.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VF-2253-506-9-52

Technical Specifications

• Body material: Forged brass
• Actuator range: SmartX
• Torque: 70 in-lb
• Protection rating: NEMA 2
• Operating fluid temperature: -7 to 121 °C
• Ambient air temperature for operation: -31.6 to 54.4 °C
• Loss of power position: Fail in place
• Duty cycle: 1
