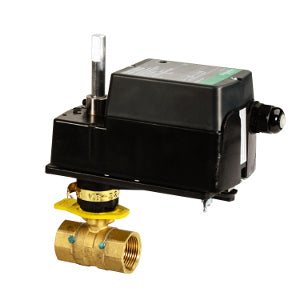

Schneider Electric VF-2253-505-9-23 Valve Assembly 24 V AC

Product Description

Schneider Electric VF-2253-505-9-23 is a valve assembly that operates with an electric actuator. This model features a one inch body size and a two-way flow configuration. It is suitable for various HVAC applications but should not be used with steam.

• Body Size: 1 inch
• Configuration: 2-Way
• Type: Ball

Product Highlights

This assembly delivers reliable performance in various control settings.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VF-2253-505-9-23

Technical Specifications

• Connection: NPT
• Material Trim: Stainless Steel
• Flow Coefficient: 15.3 cv
• Close-Off Pressure: 100 PSI
• Actuator Type: Electric
• Control Signal: Floating
• Loss of Power Type: Non-Spring Return
• Power Input Voltage: 24 VAC
• Leads and Connections: 3 ft Plenum
• Torque: 35 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7-121 °C
• Ambient Air Temperature For Operation: -31.6-54.4 °C
• Ambient Air Temperature For Storage: -40-70 °C
• Relative Humidity: 5-95 % non-condensing
• Actuator Rotation: 95 °
• Power Consumption In VA: 2.3 VA AC
