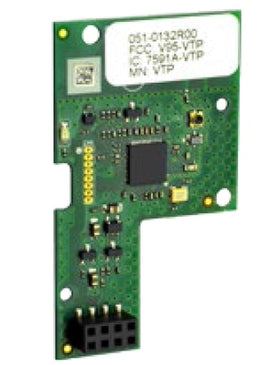

Schneider Electric VCM7600W5000W VCM7000 Series Communication Module

Product Description

The Schneider Electric VCM7600W5000W is a communication module designed for VT7000 Series room controllers. This ZigBee proprietary module enhances the communication capabilities of these network-ready controllers, allowing users to integrate them into various building automation systems.

• Easy installation for quick setup.
• Compatibility with numerous building management systems.
• Operational temperature range of zero to fifty degrees Celsius.

Product Highlights

The VCM7600W5000W enables flexible communication strategies, making it suitable for evolving building management needs. Upgrade your VT7000 Series controllers for optimal performance.

Product Information

Standard Information

• Product Type: Printed circuit board
• Weight: 0.34 kg

Technical Specifications

• Dimensions: 1 mm depth, 60 mm height, 35 mm width
• Operating Temperature: 0-50 °C
• Humidity Range: 0-95 % RH, non-condensing
• Rated Supply Voltage: 24 V AC
• Network Frequency: 50 Hz, 60 Hz
• Communication Protocol: Zigbee Proprietary
• Compliance Standards: AS/NZS CISPR 22, CSA C22.2 No 24, FCC CFR 47 part 15
• Fixing Mode: Snap-in
