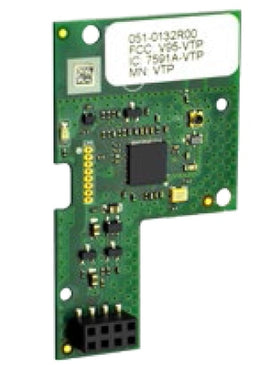

Schneider Electric VCM7260Z5000W VCM7000 Series Communication Module 24 V AC ZigBee Proprietary

Product Description

The Schneider Electric VCM7260Z5000W is a communication module designed for the VCM7000 Series. This zoning model enhances communication capabilities for network-ready VT7000 Series room controllers.

• Easy installation for network integration
• Compatible with leading building automation systems
• Supports communication upgrades as needed

Product Highlights

This module enables seamless integration into various building management systems, allowing flexibility in communication strategies to meet evolving needs.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VCM7260Z5000W

Technical Specifications

• Dimensions: 60 mm (height) x 35 mm (width) x 1 mm (depth)
• Net Weight: 0.34 kg
• Operating Voltage: 24 V AC
• Temperature Range: 0-50 °C
• Humidity Range: 0-95% RH, non-condensing
• Network Frequency: 50 Hz / 60 Hz
• Communication Protocol: Zigbee Proprietary
• Standards Compliance: AS/NZS CISPR 22, CSA C22.2 No 24, FCC CFR 47 part 15, subpart B, class A, subpart C, ICES-003, UL 873
