Schneider Electric VCM7260Z5000B VCM7000 Series Communication Module Zoning Model 7260 BACnet

Product Description

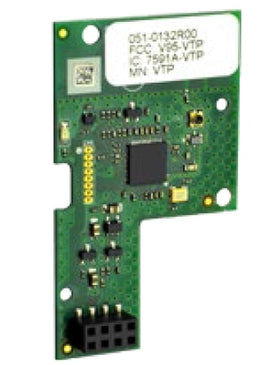

The Schneider Electric VCM7260Z5000B is a VCM7000 Series communication module designed for zoning applications using the BACnet protocol. This module facilitates easy integration with network-ready VT7000 Series room controllers, allowing for upgrades in communication capabilities. It enables building automation systems to incorporate this device seamlessly, supporting various communication strategies.

• Compatible with VT7000 Series room controllers.
• Supports BACnet communication protocol.
• Ideal for enhancing building automation systems.

Product Highlights

This communication module enhances the functionality of room controllers by integrating network communication.

Product Information

Standard Information

• Product or Component Type: Printed circuit board
• Net Weight: 0.34 kg

Technical Specifications

• Ambient Air Temperature for Operation: 0-50 °C
• Relative Humidity: 0-95 % RH, non-condensing
• Network Rated Voltage: 24 V AC
• Communication Port Protocol: BACnet
• Depth: 1 mm
• Height: 60 mm
• Width: 35 mm
• Standards: AS/NZS CISPR 22, CSA C22.2 No 24, FCC CFR 47 part 15
