Schneider Electric VCF3 Square D 690 VAC 45 Amp 3-Pole Motor Disconnect Switch

Product Description

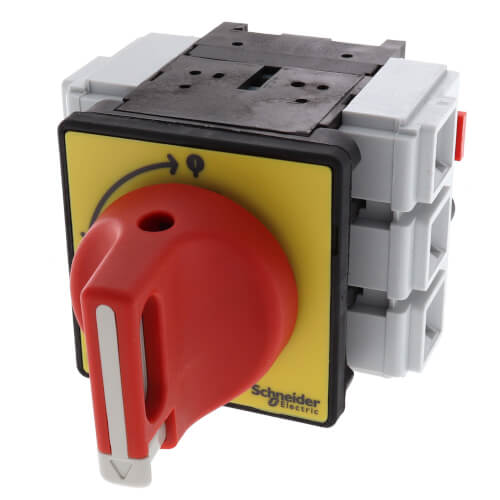

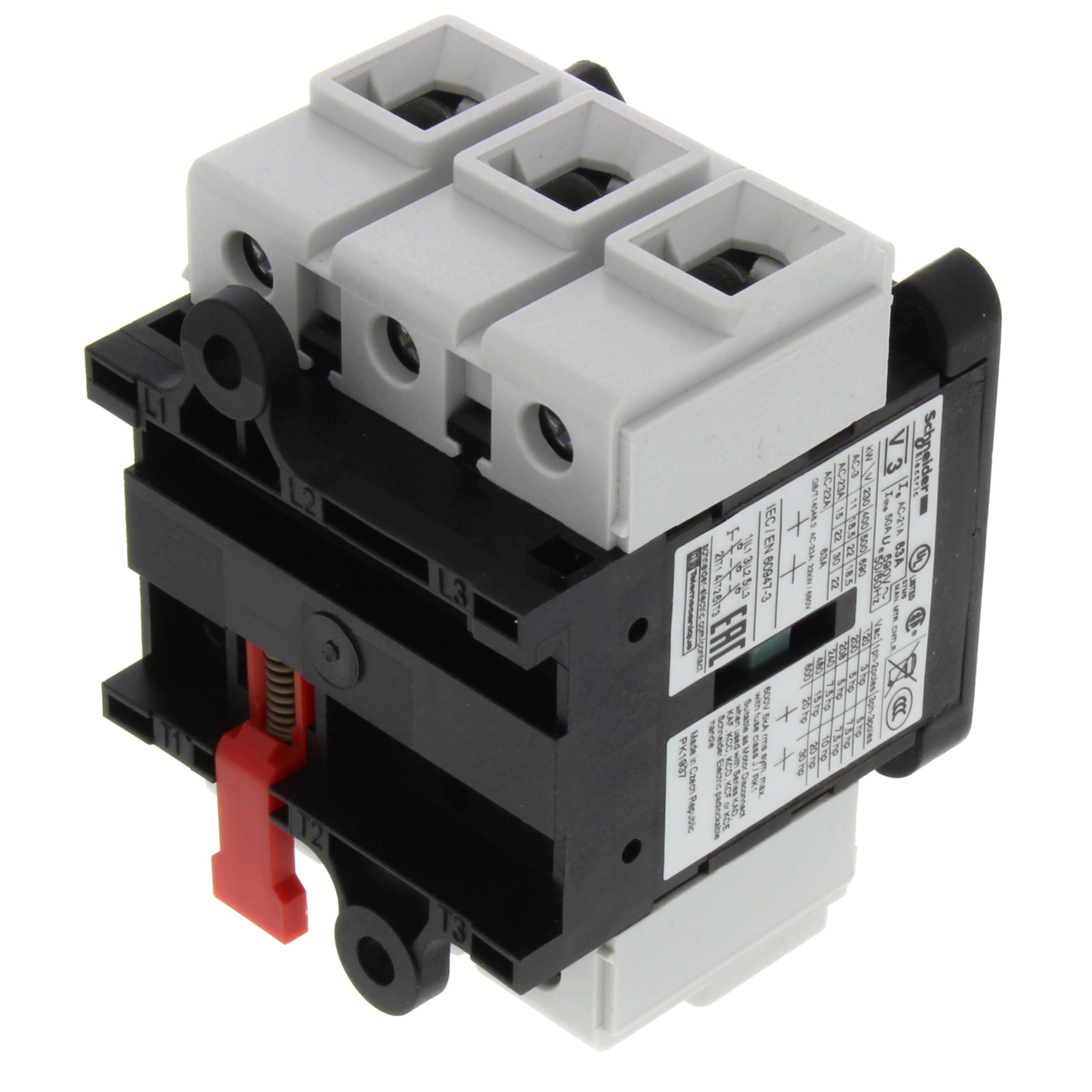

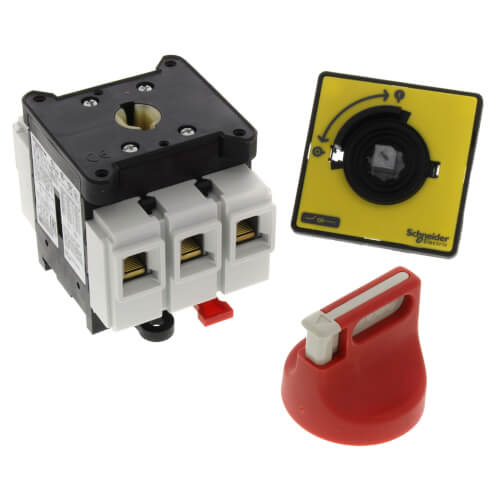

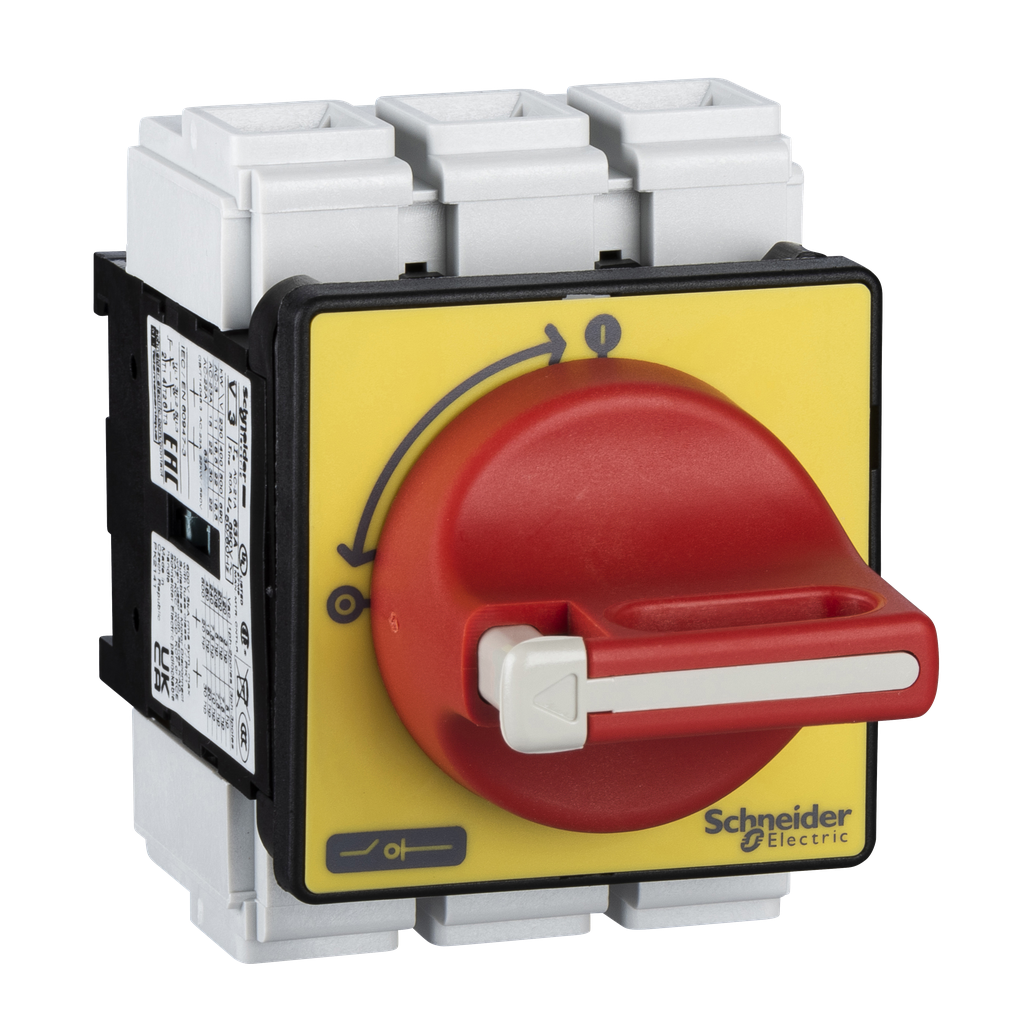

The Schneider Electric VCF3 is a three-pole TeSys Vario switch-disconnector designed for emergency stop functions in motor applications rated at twenty-two kilowatts at four hundred volts AC-23. It features door mounting with four screw fixings and a red and yellow operator secured for safety with IP65 protection.

• Designed for reliable motor disconnect applications.
• Multi-standards certified for various international markets.
• Flexibility to add up to four auxiliary poles for enhanced functionality.

Product Highlights

The VCF3 switch is suitable for main and emergency stop switching. It offers protection against water and dust with an IP65 rating, ensuring functionality even in harsh environments.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VCF3

Technical Specifications

• Catalog Number: VCF3
• Voltage Rating: 690 Volt
• Amperage Rating: 45 Amp AC-23
• Poles: 3 Pole
• Enclosure Rating: IP65
• Country of Origin: Czech Republic
• Weight: 1.23 lb
• Operating Temperature: -41 to 122 degrees F
