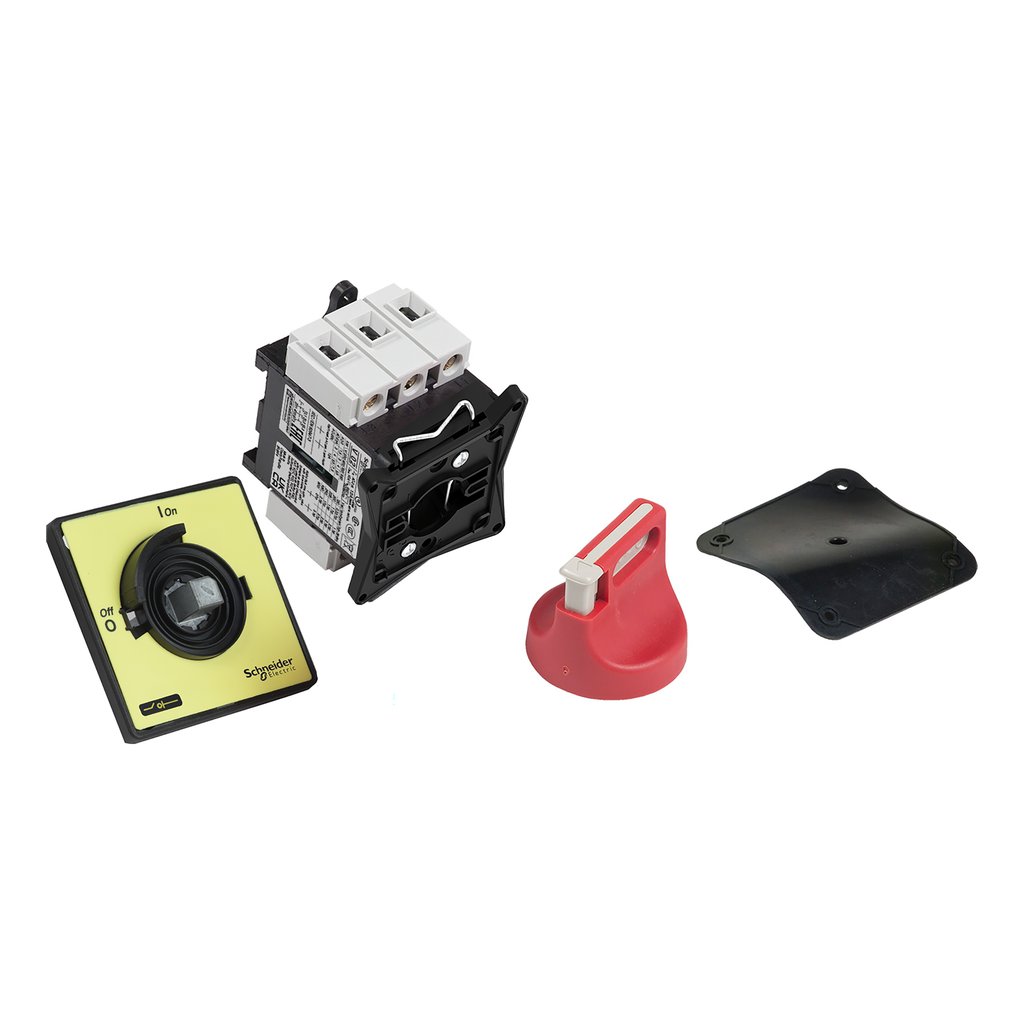

Schneider Electric VCF01 Square D 690 VAC 16 Amp 3-Pole Motor Disconnect Switch

Product Description

The Schneider Electric VCF01 is a three-pole TeSys Vario switch-disconnector designed for motor applications. It supports emergency stop functionality at up to five point five kilowatts at four hundred volts AC-23. The switch can be mounted easily on a door using four screws and features a red and yellow operator with IP65 protection.

• Rated for 690 volts AC
• Emergency stop capability with padlockable operator
• Compatible with multiple standards including IEC, UL, and CSA

Product Highlights

This device offers reliable main and emergency stop operation for motors while ensuring secure door mounting.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: VCF01
• Voltage: 690 Volts
• Wattage: Up to 11 kW at 690 Volts AC-23
• Amperage: 16 Amps AC-23 UE: 400 V
• Enclosure Rating: IP65/IP20
• Number of Poles: 3
• Operating Temperature: -4 to 122 degrees F
• Country of Origin: Czech Republic
