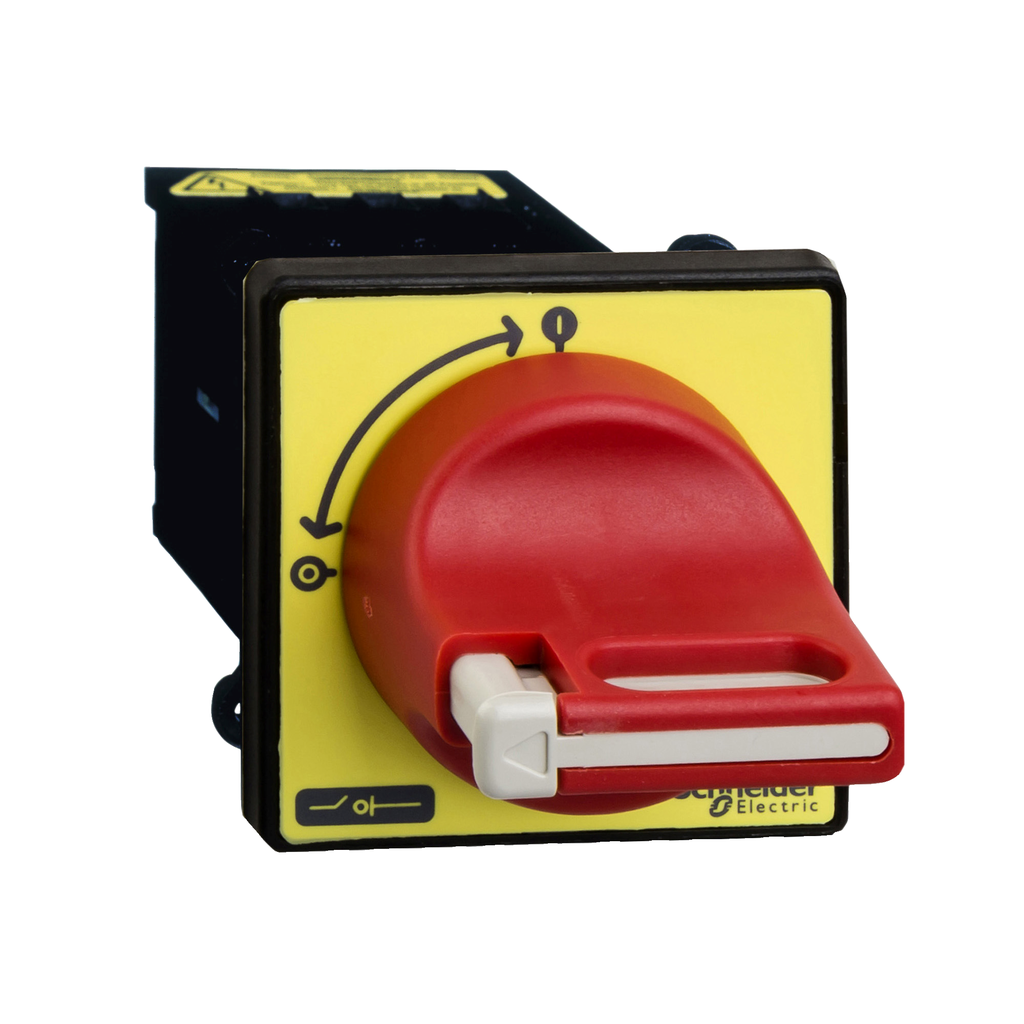

Schneider Electric VCDN20 Square D 690 VAC 16 Amp 3-Pole Motor Disconnect Switch

Product Description

The Schneider Electric VCDN20 is a 3-pole TeSys Vario switch-disconnector designed for emergency stop switching in motor applications of 5.5 kW at 400V AC-23. This product can be mounted on an enclosure door and features a red and yellow operator along with a yellow plate, offering an IP65 level of protection.

• 3-pole design for flexibility in motor applications
• Multi-standard certifications: IEC, UL, CSA, CCC, EAC, Marine
• Green Premium compliant (RoHs/Reach)

Product Highlights

The VCDN20 provides reliable switching for safety applications, ensuring clear visibility of the operator position and easy installation.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: VCDN20
• Type: Emergency stop switch disconnector
• Dimensions: 60 x 60 mm
• Weight: 0.39 lb
• Voltage Rating: 600 VAC
• Amperage Rating: 16 Amp AC-23 (400 V)
• Interrupt Rating: 200 kAIC
• Country of Origin: Czech Republic
