Schneider Electric VCCF3 Switch Disconnector TeSys Control 63A Replacement MPN

Product Description

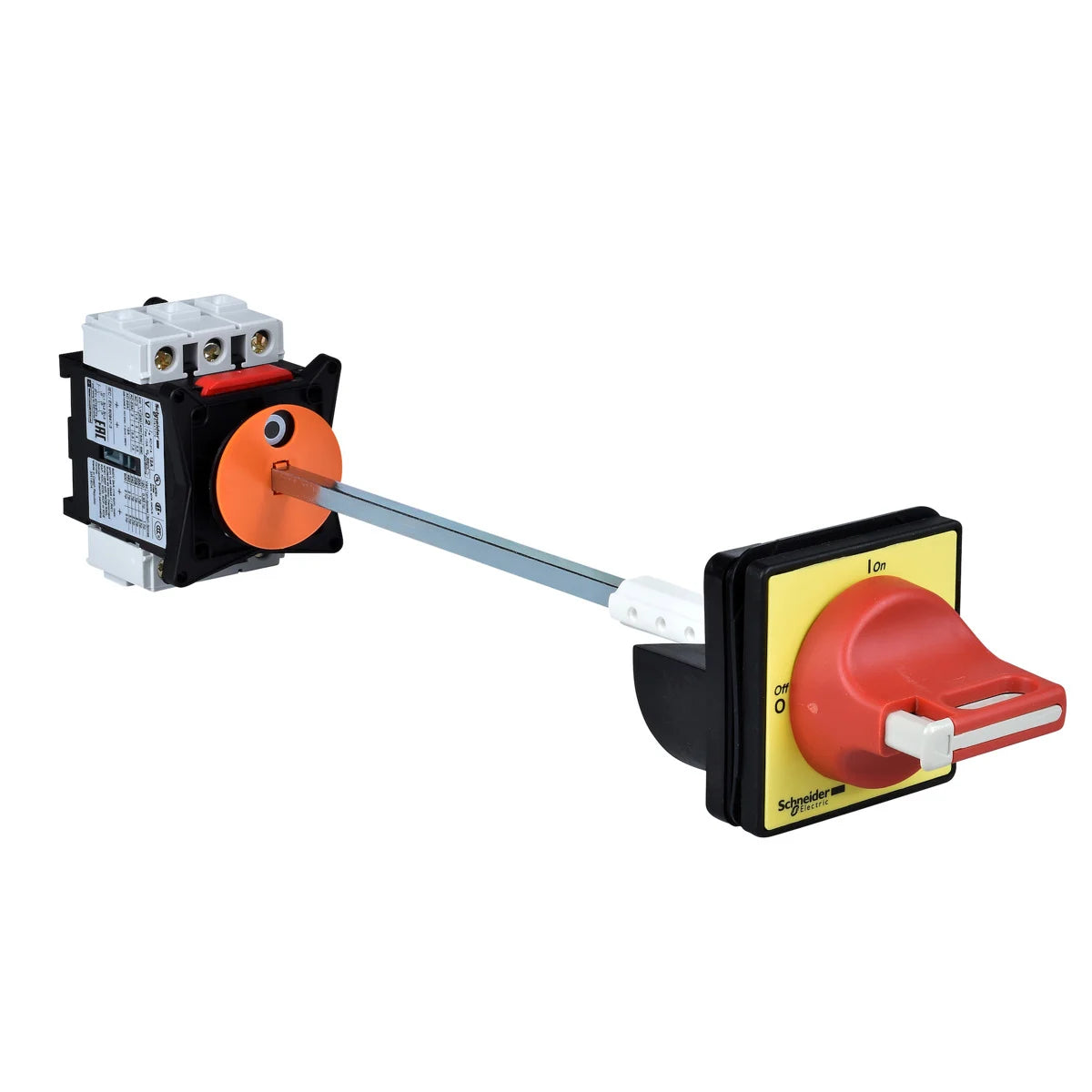

Schneider Electric VCCF3 is a 3-pole switch disconnector designed for safety in motor applications. Rated at 63A and 690V, it supports main and emergency stop functions up to 22kW at 400V AC-23. The unit consists of a V3 switch body, an extension shaft, and a padlockable handle. The unit mounts to the back of an enclosure using a four-screw fixing method.

• Uses for main and emergency stop switching in various applications.
• Multi-standard certifications include IEC, UL, CSA, CCC, EAC, and Marine.
• Green Premium compliant and RoHS/Reach certified.

Product Highlights

This device ensures secure installation with an IP65 rating suitable for various environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: VCCF3

Technical Specifications

• Rated Current: 63A
• Voltage Rating: 690V
• Mounting Method: Back mounting with 4 screws
• Operation Type: Main and emergency stop
• Compatible Applications: Motor applications up to 22kW at 400V AC-23
• Product Standards: IEC, UL, CSA, CCC, EAC, Marine
• Warranty: Contractual Warranty: 18 months
• Country of Origin: United States
