Schneider Electric VCCF0 Square D 690 VAC 20 Amp 3-Pole Motor Disconnect Switch

Product Description

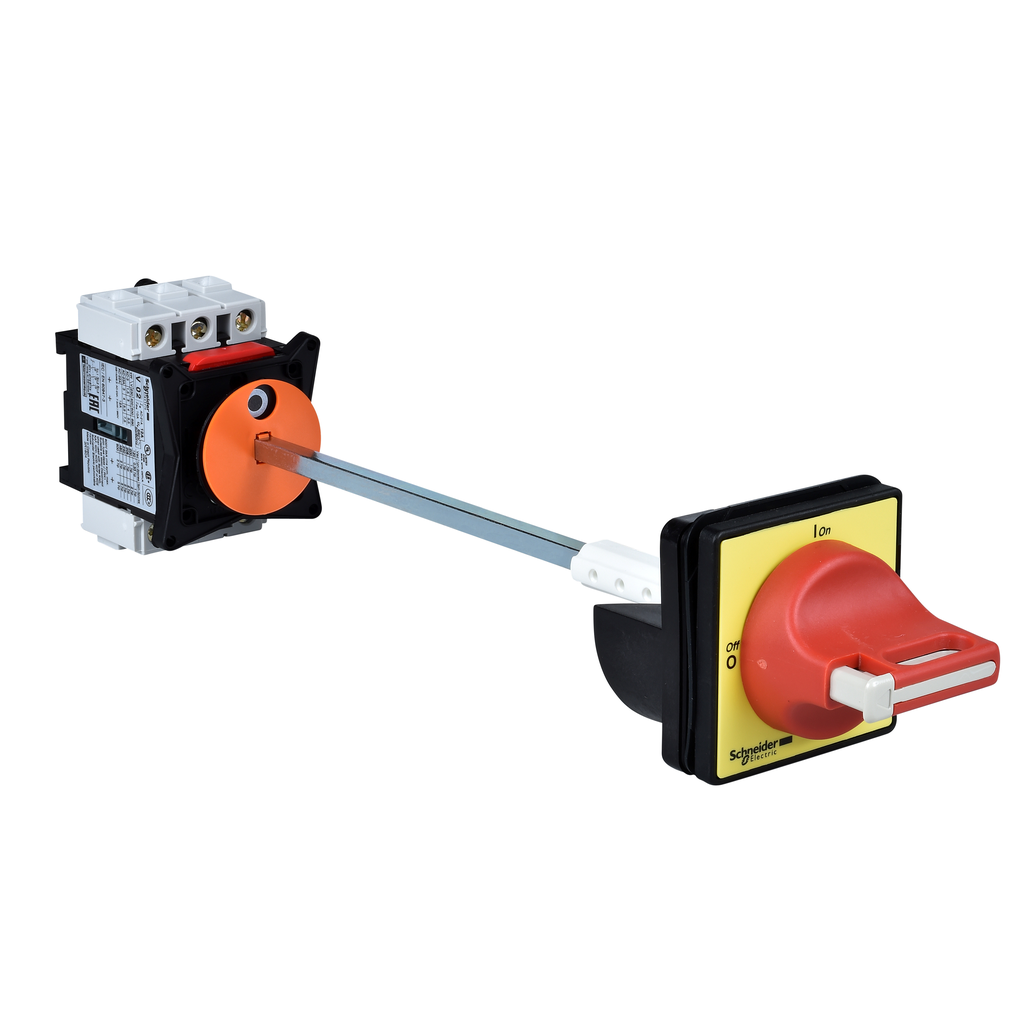

The Schneider Electric VCCF0 is a three-pole motor disconnect switch rated at 25A and 690V. It is designed for main and emergency stops in motor applications, supporting up to 7.5 kW at four hundred volt AC-23. The product includes a V0 switch body, an extension shaft, a red padlockable handle, and a yellow front plate measuring sixty by sixty millimeters. This switch is suitable for back mounting in enclosures with a four-screw fixing handle, rated at IP65 for secure mounting.

• Three-pole design for versatile motor disconnect applications
• Compatible with multi-standard certifications including IEC, UL, CSA, and CCC
• Built for safe main and emergency stop switching

Product Highlights

The VCCF0 is compliant with Green Premium standards and ensures reliable operation in various environments.

Product Information

Standard Information

• Catalog Number: VCCF0
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 690 Volt
• Amperage: 25 Amp
• Width: 60 mm
• Height: 74 mm
• Weight: 1.16 lb
• Operating Temperature: -41 to 122 degrees F
• Interrupt Rating: 200 AIC
• Country of Origin: Czech Republic
• Warranty Length: 18 months
