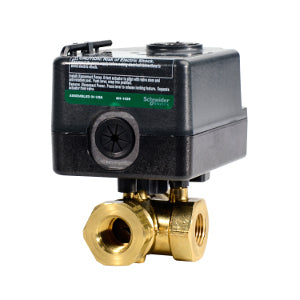

Schneider Electric VBS3N17+M220A01 SpaceLogic Ball Valve Assembly 3/4 3-Way M220A01

Product Description

The Schneider Electric VBS3N17+M220A01 is a space logic ball valve assembly designed for HVAC and plumbing applications. This product features a three-way valve configuration with a three-quarter inch body size and stainless steel trim. The valve operates with a maximum flow coefficient of 10 Cv and can handle close-off pressures up to 70 psi. It is equipped with an electric actuator that operates at 24 VAC and includes a spring return mechanism that remains closed during a loss of power.

• Body Size: 3/4 inch
• Configuration: 3-Way Mixing
• Material Trim: Stainless Steel

Product Highlights

This assembly is suitable for various HVAC systems and provides reliable performance.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Flow Coefficient: 10 Cv
• Close-Off Pressure: 70 PSI
• Control Signal: 2-Position (On/Off)
• Power Input Voltage: 24 VAC
• Material: Forged Brass Body, Stainless Steel Trim
• Ambient Air Temperature for Operation: 0-76.1 °C
• Relative Humidity: 5-95 % Non-Condensing
• Protection Rating: NEMA 2
