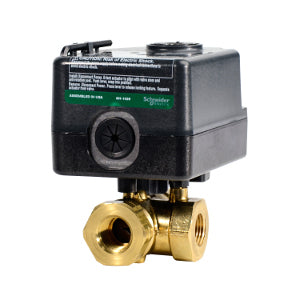

Schneider Electric VBS3N16+M220A01 SpaceLogic Ball Valve Assembly 3/4 3-Way Replacement MPN

Product Description

Schneider Electric VBS3N16+M220A01 is a SpaceLogic ball valve assembly designed for effective fluid control. With a three-way configuration, this assembly utilizes a stainless steel trim and ensures reliable performance with its seven point three Cv flow coefficient. The valve operates at a close-off pressure of seventy PSI and is powered by a twenty-four VAC input. This valve is ideal for use in HVAC systems where precise fluid management is necessary.

• Body size: 3/4 inches
• Electric actuator with spring return closed functionality
• Supports automatic reset control type

Product Highlights

Durable construction and versatile design make this valve assembly suitable for HVAC applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Origin: US

Technical Specifications

• Configuration: 3-Way Mixing
• Material Trim: Stainless Steel
• Power Input Voltage: 24 VAC
• Ambient Air Temperature for Operation: 0-76.1 °C
• Connection Type: NPT
• IP Degree of Protection: IP11
• Relative Humidity: 5-95% non-condensing
• Flow Coefficient: 7.3 Cv
