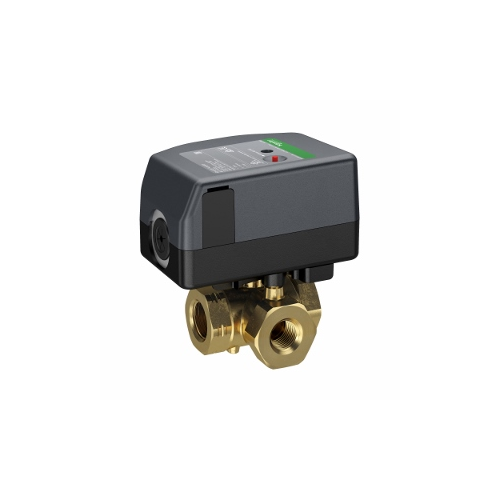

Schneider Electric VBS3N12+M332A00 SpaceLogic Ball Valve Assembly 3/4 3-Way Replacement VBS3N12+M332A00

Product Description

The Schneider Electric VBS3N12+M332A00 is a ball valve assembly designed for reliable operation in various control applications. This model features a three-way configuration and is suitable for use in HVAC systems where precise fluid control is required. The valve operates with a capacity of 1.0 Cv and is effective at close-off pressures of up to seventy psi. It utilizes a floating actuator with a 24 VAC power supply and has a non-spring return mechanism for enhanced efficiency.

• Durable forged brass construction
• Operates in temperatures ranging from negative seven to one hundred twenty-one degrees Celsius
• IP11 rated for protection against dust and moisture

Product Highlights

This valve assembly is ideal for both residential and commercial applications, ensuring optimal control of fluid flow in heating and cooling systems.

Product Information

Standard Information

• Actuator: rotary
• Body Material: forged brass

Technical Specifications

• Operating Fluid Temperature: -7 to 121 °C
• Ambient Air Temperature for Operation: 0 to 60 °C
• Ambient Air Temperature for Storage: -40 to 76 °C
• Power Consumption: 2.4 VA AC
• Relative Humidity: 5 to 95 % non-condensing
• Motor Type: split capacitor synchronous motor
• NEMA Degree of Protection: NEMA 2
• Seat Leakage: Port A: Class IV (0.01 %)
