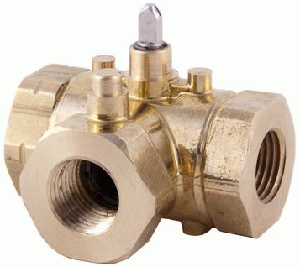

Schneider Electric VBS3N04 SpaceLogic Ball Valve 3-Way 1/2 Pack

Product Description

The Schneider Electric VBS3N04 is a 3-way ball valve designed for effective fluid control in various applications. It features a body size of one-half inch and is made of forged brass with stainless steel trim. This valve operates with control media including glycol and water, making it suitable for HVAC systems and industrial processes.

• Body Size: 1/2 inch
• Configuration: 3-Way Mixing
• Connection Type: NPT

Product Highlights

This valve is ideal for mixing applications where precise control of the flow direction is needed. It supports a flow coefficient of 3 Cv and a close-off pressure of seventy psi, ensuring reliable performance.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: SmartX
• Country of Origin: US

Technical Specifications

• Body Material: Forged Brass
• Flow Coefficient: 3 Cv
• Operating Fluid Temperature: -7 to 121 °C
• Control Media: Glycol 25%, Glycol 30%, Glycol 50%, Glycol 60%, Water
• Seat Leakage: Port A: Class IV (0.01 %)
• Product Series: VBS3
• Valve Connection Size: 1/2 inch
• Not for Use with Steam
