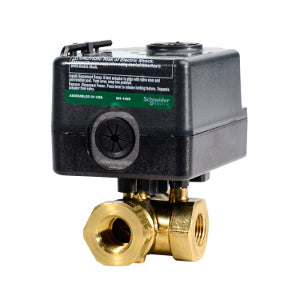

Schneider Electric VBS3N04+M210A01 Ball Valve Assembly 1/2 3-Way Replacement MPN

Product Description

Schneider Electric's VBS3N04+M210A01 is a ball valve assembly designed for various HVAC applications. This assembly features a half-inch body size and is optimized for two-position control, making it suitable for on/off applications. Its stainless steel trim and robust design ensure long service life and reliability.

• Body Size: 1/2 inch
• Configuration: 3-Way Mixing
• Type: Electric Actuator

Product Highlights

The Schneider Electric VBS3N04+M210A01 is widely used in HVAC systems for controlling fluid flow efficiently. Its design promotes high performance while ensuring ease of installation and maintenance.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Actuator Type: Electric
• Flow Coefficient: 3 Cv
• Close-Off Pressure: 70 psi
• Power Input Voltage: 24 VAC
• Mechanical Movement: Rotary
• Protection Rating: NEMA 2
• Ambient Temperature for Operation: 0-76.1 °C
• Relative Humidity: 5-95 % non-condensing
