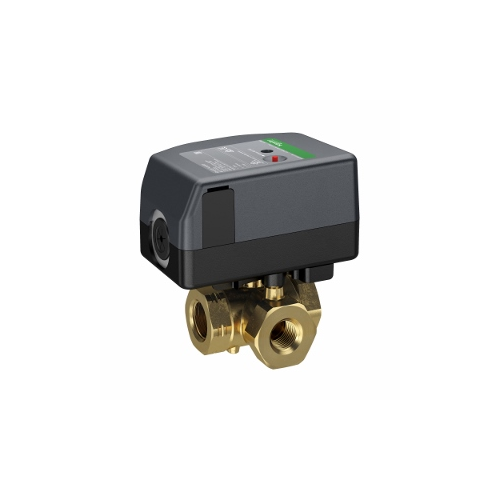

Schneider Electric VBS3N02+M332A01 SpaceLogic Ball Valve Assembly 1/2 3-Way Replacement MPN

Product Description

The Schneider Electric VBS3N02+M332A01 is a space-saving ball valve assembly designed for various applications. This assembly features a half-inch, three-way valve configuration and is built with stainless trim. It operates at a flow coefficient of 1.0 Cv and can withstand close-off pressures of up to seventy psi. This valve operates on a twenty-four VAC power supply without a spring return mechanism, facilitating easy integration into HVAC and plumbing systems.

• Floating design for effective flow control
• Durable forged brass body
• Automatic reset control type

Product Highlights

This product is ideal for system configurations where control over fluid flow is necessary. It offers high reliability and functionality across a range of temperature and humidity conditions.

Product Information

Standard Information

• Actuator: Rotary
• Body Material: Forged brass
• Control Type: Automatic reset
• Operating Fluid Temperature: From -7 to 121 °C
• Ambient Air Temperature for Operation: From 0 to 60 °C
• Relative Humidity: 5 to 95 % non-condensing
• Power Consumption in VA: 2.4 VA AC

Technical Specifications

• Product Dimension: 1/2 inch
• Pressure Class: 70 psi close-off
• Flow Coefficient (Cv): 1.0
• IP Protection: IP11
• Motor Type: Split capacitor synchronous motor
• NEMA Degree of Protection: NEMA 2
