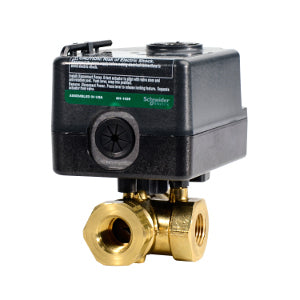

Schneider Electric VBS3N00 M210A01 Ball Valve Assembly 1/2 3-Way Replacement VBS3N00

Product Description

The Schneider Electric VBS3N00+M210A01 is a ball valve assembly designed for efficient control in various plumbing and HVAC applications. It features a 1/2 inch size with a 3-way configuration and stainless steel trim. This valve supports a flow coefficient of 0.3 Cv and a close-off pressure of 70 psi. The actuator operates at 24 VAC and springs return to the open position, making it suitable for use in automated control systems.

• Body Size: 1/2 inch
• Flow Coefficient: 0.3 Cv
• Power Input Voltage: 24 VAC

Product Highlights

This valve is ideal for automatic control applications. It is designed for normal operation without steam.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Configuration: 3-Way Mixing
• Material Trim: Stainless Steel
• Close-Off Pressure: 70 PSI
• Actuator Type: Electric
• Protection Rating: NEMA 2
• Ambient Air Temperature For Operation: 0-76.1 °C
• Relative Humidity: 5-95 % non-condensing
• Actuator Range: SmartX
