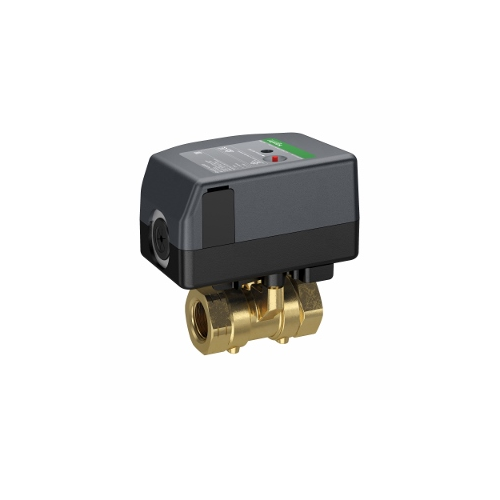

Schneider Electric VBS2N17+M332A01 SpaceLogic Ball Valve Assembly 3/4 2-Way Replacement MPN

Product Description

The Schneider Electric VBS2N17+M332A01 is a ball valve assembly designed for reliable control in HVAC applications. This 2-way valve features a three-quarter inch size, stainless trim, and a flow coefficient of 10 Cv. It operates at a close-off pressure of 130 psi, offering strong performance in various environments. The valve is designed for ease of installation and use, making it suitable for trade professionals.

• Rated for up to 24 VAC operation
• Includes a 10-foot plenum cable
• Constructed with forged brass for durability

Product Highlights

This valve assembly provides essential control over fluid flow in mechanical systems, ideal for heating and cooling setups.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: North America

Technical Specifications

• Body Material: Forged brass
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Air Temperature for Operation: 0 to 60 °C
• Seat Leakage: Port A: Class IV (0.01 %)
• NEMA Degree of Protection: NEMA 2
• Power Consumption: 2.4 VA AC
• Control Type: Automatic reset
• Motor Type: Split capacitor synchronous motor
