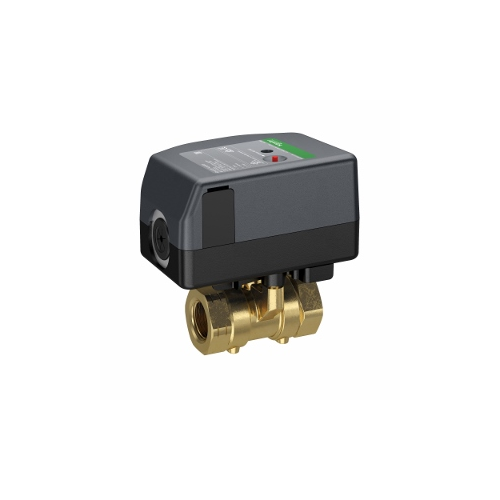

Schneider Electric VBS2N16+M332A01 Ball Valve Assembly 3/4 2-Way Stainless Trim

Product Description

The Schneider Electric VBS2N16+M332A01 is a reliable ball valve assembly designed for various applications. This two-way valve is made with stainless trim and is suitable for cooling and heating systems. It offers a capacity of 7.7 Cv, ensuring efficient fluid control.

• Automatic reset control type
• Suitable for floating actuator applications
• IP11 rated for protection

Product Highlights

This product ensures effective operation in demanding environments, with a close-off pressure rated at 130 psi and a wide temperature range for fluid handling.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve actuator assembly

Technical Specifications

• MPN: VBS2N16+M332A01
• Body Material: Forged brass
• Operating Fluid Temperature: Minus seven to one hundred twenty-one degrees Celsius
• Flow Pattern: Two-way
• Power Consumption: 2.4 VA AC
• Relative Humidity: 5-95% non-condensing
• Motor Type: Split capacitor synchronous motor
• Ambient Air Temperature For Operation: Zero to sixty degrees Celsius
