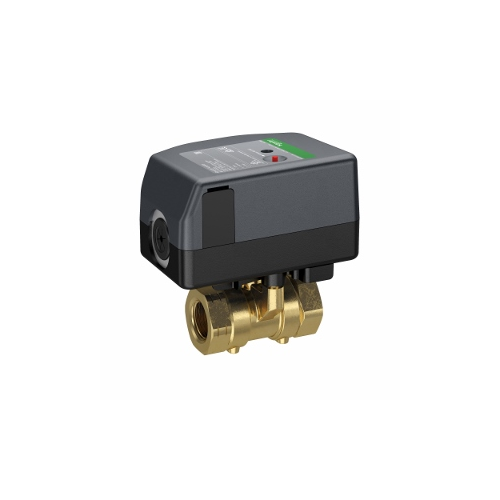

Schneider Electric VBS2N15+M332A01 SpaceLogic Ball Valve Assembly 3/4 2-Way Replacement MPN

Product Description

Schneider Electric VBS2N15+M332A01 is a ball valve assembly designed for efficient flow control in plumbing and HVAC applications. This product features a two-way operation and a stainless steel trim, ensuring durability and reliability.

• System operates under a pressure of up to 130 psi.
• Comes with a plenum cable of ten feet for ease of installation.
• Suitable for ambient air and non-condensing environments.

Product Highlights

The valve uses a rotary actuator for precise operation and is ideal for heating and cooling systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer Part Number: VBS2N15+M332A01

Technical Specifications

• Body Material: Forged brass
• Flow Coefficient (Cv): 4.7
• Temperature Range: -7 to 121 °C
• Ambient Temperature for Operation: 0 to 60 °C
• Operating Weight: 1.08 kg
• IP Protection Class: IP11
• Power Consumption: 2.4 VA AC
• Relative Humidity Range: 5-95 % non-condensing
