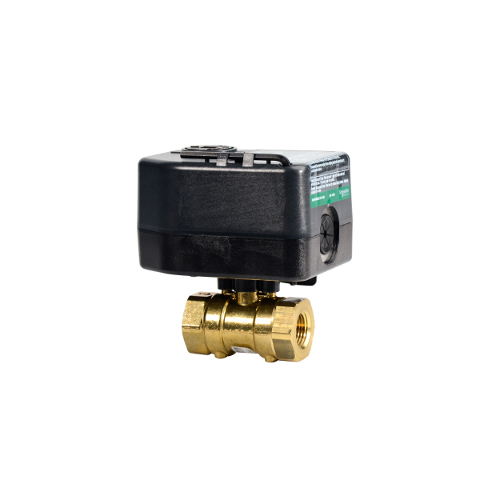

Schneider Electric VBS2N15+M220A00 Ball Valve Assembly 3/4 2-Way M220A00

Product Description

The Schneider Electric VBS2N15+M220A00 is a reliable ball valve assembly designed for efficient fluid control. This unit has a three-quarter-inch body size and features a two-way configuration. The valve is suitable for various applications, providing a flow coefficient of 4.7 Cv and a close-off pressure rating of one hundred thirty psi.

• Body Size: 3/4 inch
• Power Input Voltage: 24 VAC
• Operating Fluid Temperature: -7 to 121 degrees Celsius

Product Highlights

This ball valve assembly facilitates two-position control and has a spring return closed feature. It is designed with a durable stainless steel trim and is NPT connected, ensuring dependable performance in HVAC systems and other applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Actuator Type: Electric
• Protection Rating: NEMA 2
• Control Signal: 2-Position
• Valve Body: VBS2N15
• Actuator: M220A00
• Ambient Air Temperature For Operation: 0 to 76.1 degrees Celsius
• Relative Humidity: 5-95% non-condensing
• Mechanical Movement: Rotary
