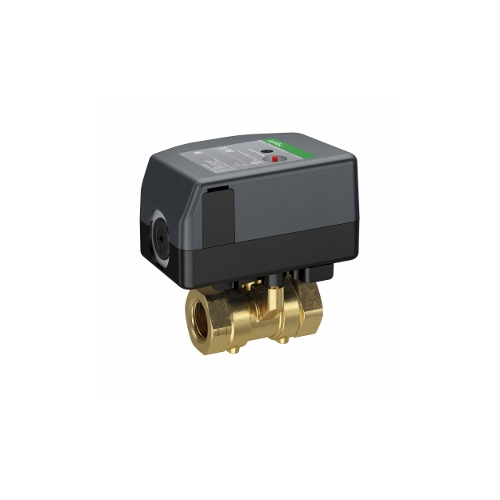

Schneider Electric VBS2N14+M332A01 SpaceLogic Ball Valve Assembly 3/4 2-Way Replacement MPN

Product Description

The Schneider Electric VBS2N14+M332A01 is a space logic ball valve assembly designed for rigorous applications. It features a three-quarter inch two-way valve with stainless trim. This valve supports easy integration with various systems, functioning effectively up to 130 psi close off pressure and a flow coefficient of 3.5 Cv. Its floating design and robust construction make it suitable for various heating and cooling systems.

• 2-way operation for precise flow control
• Compatible with 24 VAC power supply
• Constructed from durable forged brass with PTFE seal for enhanced lifespan

Product Highlights

The valve assembly is suitable for automatic reset control with rotary actuator functionality, ensuring efficient operation in diverse environments.

Product Information

Standard Information

• Actuator Type: Rotary
• Body Material: Forged brass

Technical Specifications

• Operating Fluid Temperature: -7 to 121 °C
• Close-Off Pressure: 130 psi
• Control Type: Automatic reset
• Power Consumption: 2.4 VA AC
• Ambient Air Temperature for Operation: 0 to 60 °C
• Relative Humidity: 5 to 95 % non-condensing
• NEMA Degree of Protection: NEMA 2
• Stroke Running Time: Not specified
