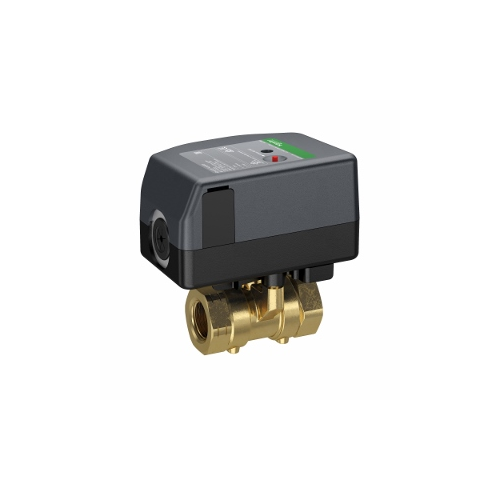

Schneider Electric VBS2N14+M332A00 SpaceLogic Ball Valve Assembly Power 3/4 Replacement MPN

Product Description

The Schneider Electric VBS2N14+M332A00 is a ball valve assembly designed for efficient control in fluid systems. Featuring a two-way operation, this valve is suitable for use in various applications where precise flow regulation is necessary.

• Standard size of three-quarters inch.
• Capable of handling pressures up to one hundred thirty psi.
• Operates at a voltage of 24 VAC and has a floating mechanism.

Product Highlights

The Schneider Electric ball valve assembly is ideal for HVAC systems, plumbing applications, and any industrial setups requiring reliable valve control.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve-actuator assembly

Technical Specifications

• Body Material: Forged brass
• Operating Fluid Temperature: -7 to 121 degrees Celsius
• Seat Leakage: Class IV (0.01%) at Port A
• Power Consumption: 2.4 VA AC
• Ambient Air Temperature for Operation: 0 to 60 degrees Celsius
• Ambient Air Temperature for Storage: -40 to 76 degrees Celsius
