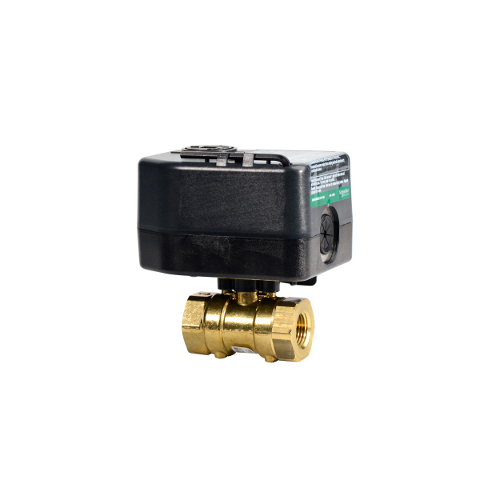

Schneider Electric VBS2N14+M210A12 Ball Valve Assembly 3/4 2-Way Replacement MPN

Product Description

The Schneider Electric VBS2N14+M210A12 is a ball valve assembly designed for control applications in HVAC systems. It features a three-quarter inch body size and a two-way configuration for versatile flow management.

• Body Size: 3/4 inch
• Material: Stainless Steel Trim
• Operating Voltage: 24 VAC

Product Highlights

This valve assembly supports efficient operation with a flow coefficient of 3.5 Cv and a close-off pressure of 130 PSI. It utilizes an electric actuator type, providing precise control for various applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Material: Forged Brass
• Control Signal: 2-Position (On/Off)
• Leakage Class: Class IV (0.01 %)
• Protection Rating: NEMA 2
• Ambient Temperature for Operation: 0-76.1 °C
• Power Supply Voltage: 120 to 277 VAC
• Relative Humidity: 5-95 % non-condensing
• Electrical Insulation Class: NEMA 2
