Schneider Electric VBS2N11+M332A00 SpaceLogic Ball Valve Assembly 3/4 2-Way Replacement MPN

Product Description

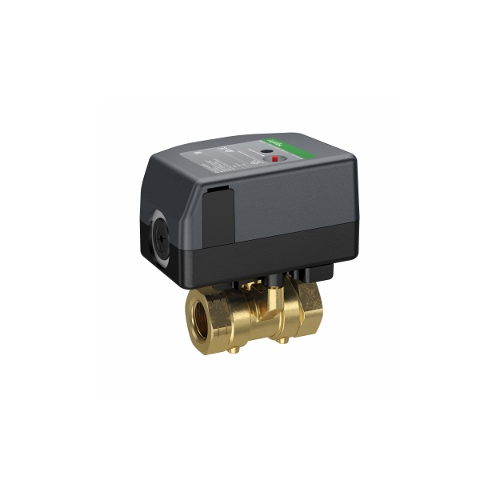

Schneider Electric VBS2N11+M332A00 is a spaceLogic ball valve assembly designed for reliable operation. This product is ideal for environments requiring precise flow control. The assembly features a two-way valve design and is built from durable stainless trim.

• Type: Two-way
• Operating Voltage: 24 VAC
• Cv: 0.7

Product Highlights

This ball valve assembly efficiently manages fluid flow in HVAC systems. Its rotary actuator provides automatic reset functionality for precise control.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: North America

Technical Specifications

• Body Material: Forged brass
• Operating Fluid Temperature: -7 to 121 degrees Celsius
• Close Off Pressure: 130 psi
• Power Consumption: 2.4 VA AC
• Weight: 1.08 kg
• Dimensions: 18.03 cm height, 35.76 cm width, 43.43 cm length
• NEMA Degree of Protection: NEMA 2
• IP Degree of Protection: IP11
